The machine is the ideal equipment for removing drilling burr, oxidation layer on the copper surface of the PCB, it adopted high pressure imported pump and the pressure can reach 30 kg/cm2, so the drilling burr and dirt could be cleaned thoroughly.
Product description
Process
Load →Brushing →Pressure rinse →High pressure rinse→ Fresh water rinse→Blot up →drying →Unload
Basic Specifications
Dimensions: 5485mmL × 1800mmW ×1970mmH
the workpiece size: : 600mm (widest)
: 170mm × 170mm (minimum)
: 0.2-3.2mm (thickness)
Conveyor speed: 0-5M / min
design speed: 8-2.5 m / min
transport plane height: 950± 20mm of the conveyor surface width: 600mm
Transfer Wheel diameter: Ф40mm
Wheel base: 50mm
Power supply: 380V / AC / 50HZ / 27KW
Water consumption: 10-20L / min
Transfer direction: Left to right (viewed from the front)
The control system: PLC With touch screen
the position of wire: Top hanging
the number of drains: A drain pipe
water inlet: 1 pipe

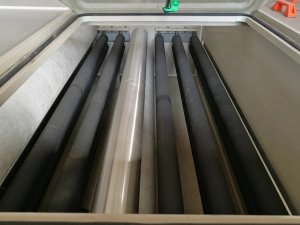

Product details
