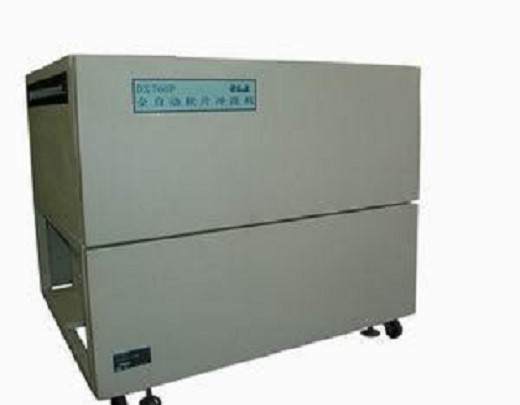

The film processors adopt refined stainless steel frame as bodies to ensure no corrosion during working life even when depainting, with refined stainless steel tank that is firm, durable and high-quality roller. Easy dismantlement and maintenance without any tools.
Product description
|
Film Processer |
|
|
|
Item |
Specification |
|
|
Developing method |
Monochrome with high temperature |
|
|
Minimum film length (mm) |
150 |
|
|
Film width (mm) |
760 |
|
|
Maximum film width (mm): |
780 |
|
|
Speed(mm/min) |
1060~363 |
|
|
Overall process time (s) |
90~270 |
|
|
Developing time (s) |
20-60 |
|
|
Liquid temperature (℃) |
20~50 |
|
|
Drying temperature (℃) |
20~60 |
|
|
Auto adding liquid (ml/time) |
40~500 |
|
|
Trough capacity (L) |
D14.6,F14 |
|
|
Size(L×W×H) mm3 |
1243×1084×1057 |
|
|
Quality (kg) |
180 |
|
|
Film thickness |
0.08~0.25mm |
|
|
Power supply |
AC 220V |
|
|
Resin Plate thickness |
0.1~0.25mm |
|
|
Film length |
0.2~60m |
|
|
Additional liquid capacity |
15.2L |
|
|
Waste liquid capacity |
15.2L |
|
