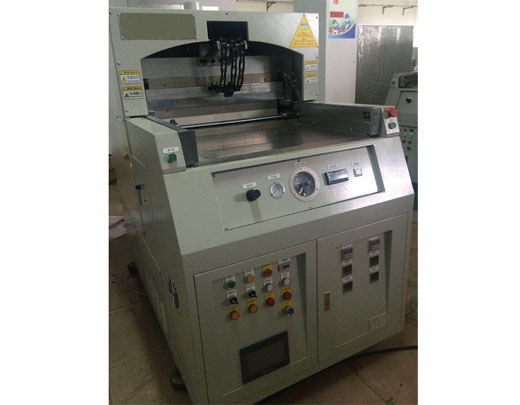

One opening quick laminate machine

Rigid PCB Equipment

Finished products have good effect on peeling strength and sealing,high uniformity.

Download

General Specifications

1	Dimension	*L1200 W900 * H1460mm**
2	Working height	1090 +/- 20
3	Operating Weight	1450Kg
4	Power supply	Three-phase 380V / 60Hz, 3phase
5	Power consumption	7.4 KVA
6	Air consumption	5 L / min
7	Air demand	Diameter 12mm, 6 +/- 0.5kg / cm2
8	Cooling demand	no
9	Exhaust demand	Diameter 100mm,Wind velocity more than 5M
10	Net weight	1880KG

Technical Specifications:
- Fixture board size: L560 * W380(MAX).
- Heating plate size: top heating plate: 490MM * 620MM; bottom heating plate: 480MM *617MM
- Capacity: The average time to 120sec Is a cycle (containing load and unloadtime)
Working time: 960min * 0.85 = 816min / day, 816min / 120sec = 408min Plate surface area= 0.36 * 0.25 = 0.09M²,

then: 408min / day * 0.09M² = 36.7M² / day (4)Hydraulic output: A. motor-3HP,

b.Hydraulic stroke-Max: 40mm.Maximum set pressure 14OKGF / C M²,

c.Hydraulic Bore-Φ 125mm * 2PCS,Common pressure 125KGF / C M²,Output: 15TON * 2 pieces,
- Control System: PLC program
- Compressed air system: A. Table pressure:. 5 ~ 7kg /cm2
1. consumption: 5L / Min
- Pressing type: Silicone hot pressing(Vacuum airbag),Maximum set pressure: 24KG / C M²;Common pressure: 2OKG / CM²
- Heating type: electronicHeating tube: 7 * 495 * 300W * 380V top 8 pieces
12.7 * 485 * 300W * 380V Bottom 8 pieces
- temperaturecontrol:
When 175 ± 5 ° C, top and bottom heating plate temperature equalizing± 10C; top and bottom heater by temperature SENSOR Independent control
- Insulation materials: high temperature resistance insulation plate, The highest temperature 280 °C
- Heating plate open angle:32°
- Maximum operating vacuum: 720 ~ 760mmHg; Working pressure(first time pressure): 6 ± 0.5 kg /cm2;
Working pressure(Second time pressure): 8 ~ 20 kg / cm2
